Midnite Solar  |  SKU: COMB-MIDNITE-MNPV6

DC Combiner Box for 6 x 150 VDC Breakers or 4 x 600 VDC Fuse Holders | MNPV6

$262.99 CAD
Shipping calculated at checkout.

The MNPV6 combiner is rated for outdoor use. Designed for combining PV strings up to 150VDC and 120 amps total using breakers, or high voltage strings up to 1000VDC

Warranty

This product is covered by a 5 years warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

Technical Specifications User Manual

The MNPV6 combiner is rated for outdoor use. Designed for combining PV strings up to 150VDCa and 120 amps total using breakers, or high voltage strings up to 1000VDC using 10mm x 38mm fuses up to 80 amps total (MNPV6). The use of touch safe din rail mount fuse holders and fuses allow operation up to 1000 Volts.

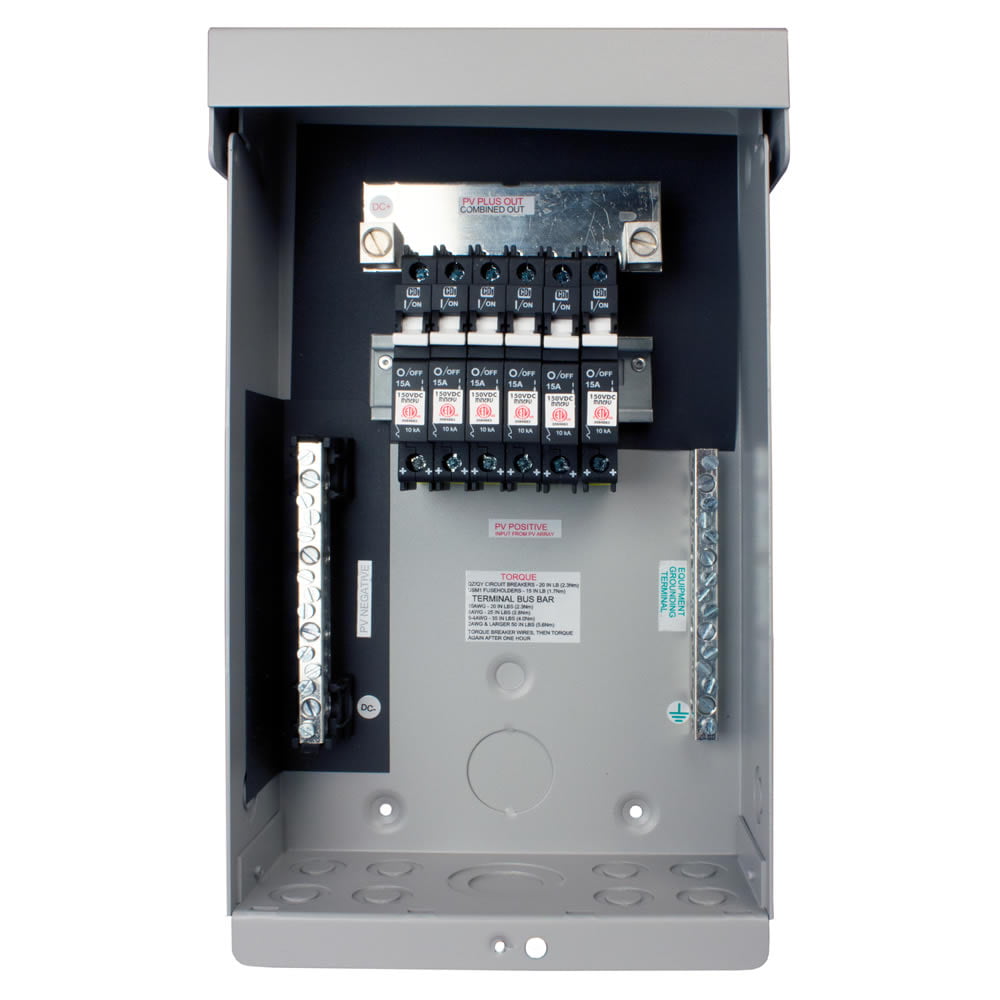

The MNPV6 combiner comes with two copper bus bars. One for circuit breakers and one for fuses.

Applications:

  • PV combiner up to six strings using MNEPV breakers rated for 150VDC. 120 amps total output
  • PV ccombiner up to three strings using MNEPV breakers rated for 300VDC. 120 amps total output
  • PV combiner up to four strings using 1000VDC fuses and MNTS touch safe fuse holders rated for 1000VDC
  • DC load center using MNPV breakers

Features:

  • All aluminum powder coated housing that won’t rust
  • Flip up cover that can stay in the open position during installation
  • PV Negative bus bar with 14 useable openings (10 #14-6 and 4#1/0-14)
  • Chassis ground bus bar with 14 useable openings (10 #14-6 and 4#1/0-14)
  • Standard din rail to mount up to 6 breakers or 4 fuse holders (MNPV6)
  • Tin plated copper bus bar to combine breaker outputs (MNPV6 busbar may be split in two)

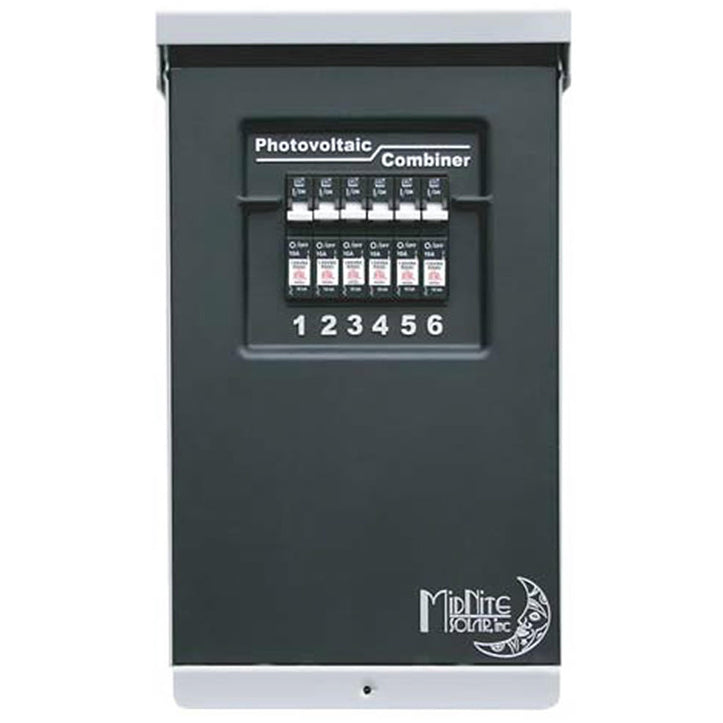

  • Dead front cover snaps into place after wiring is complete for safety
  • Knockouts for PV in and PV out on bottom and sides
  • Top surface is available to bring conduit in from directly above the enclosure
