SOLAR COOLING 12,000 BTU Hybrid Solar Mini-Split Kit + 1000 Watts of Solar PV — Air Conditioner Heat Pump Energy Star Certified – Solar Cooling
1 4
Solar Cooling

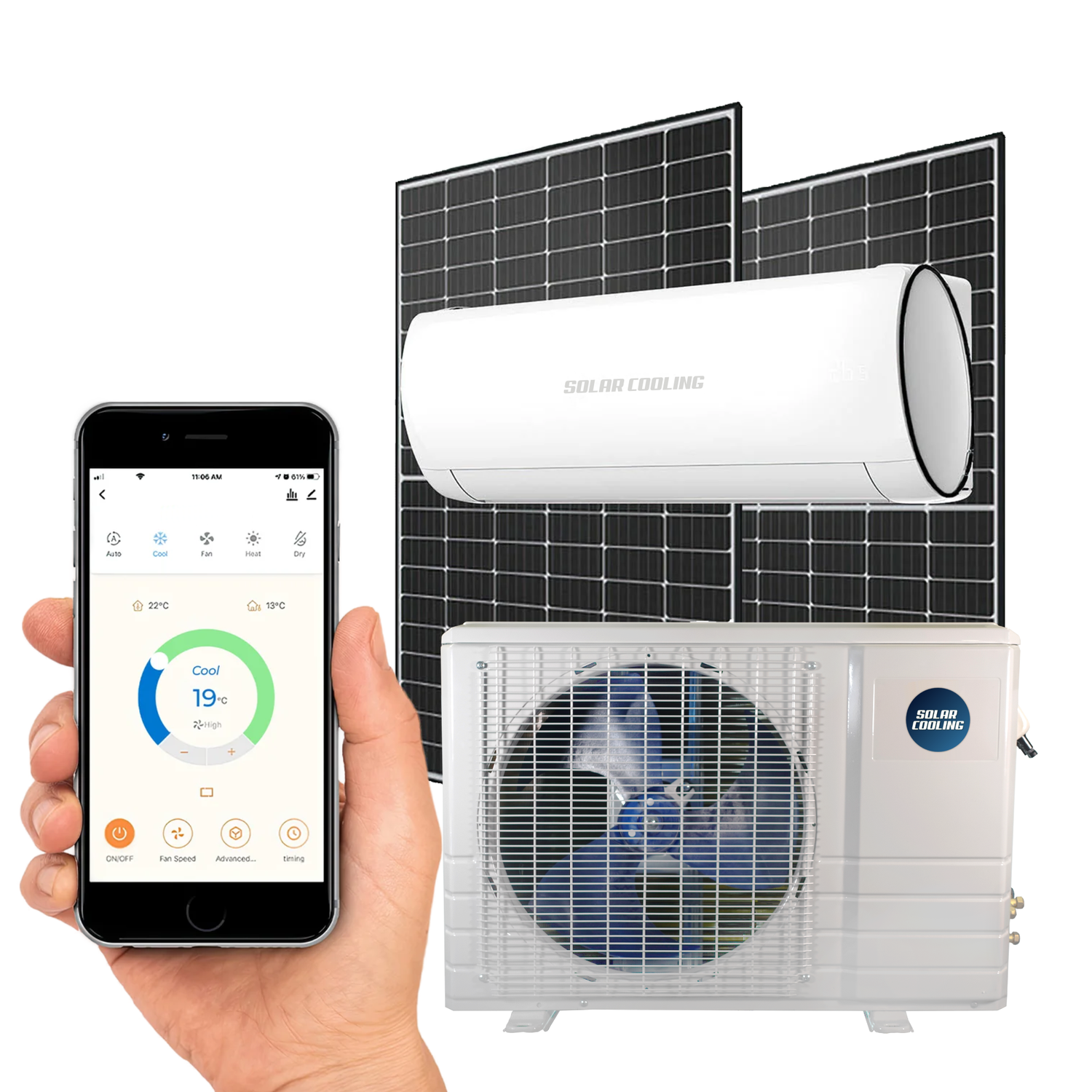

KIT 12,000 BTU — Hybrid Solar Mini-Split + 1000 Watts of Solar PV + installation accessories — Air Conditioner Heat Pump Energy Star Certified — SEER2 23.4

$1,799.00 CAD $2,749.00
Shipping calculated at checkout.

Description
  • Weight: 83.77 lb (38 kg)
  • Rated BTU: 1 Ton / 12 000
  • Cooling Efficiency Rating (SEER2): 23.40
  • Heating Efficiency Rating (HSPF2): 9.70
  • Energy Star Certified

Suggested Solar Power: 900 W - 1800 W. For off-grid use, aim at least for the higher end of this range (around 1800 W) to ensure reliable operation. In hybrid mode (solar + grid), less solar input is needed, so 900 W may be sufficient.

Recommended Floor Area: 500-900 sq ft (45-85 sq m)

*Factors such as climate zone, flooring type, ceiling height and insulation will affect recommended BTU per sq ft / sq m.

Included:
  • Indoor Unit
  • Outdoor Unit
  • Remote Control
  • 2m (6.5ft) Drain Hose
  • 4m (13ft) Communication Cable
  • 5m (16ft) Refrigerant Line Set (3/8 + 1/4)
  • 2 x Longi 500W Monocrystalline Bifacial Solar Panels (1000 Watts)

Warranty

Standard 1-year limited warranty included. To qualify for the extended 5-year limited warranty, the system must be installed by qualified, certified professionals and comply with all applicable warranty terms and conditions: https://solarcooling.ca/pages/warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days.

Please note: this product contains solar panels and is not eligible for free shipping, even during free shipping promotions, due to its size and weight. Shipping charges are calculated separately at checkout.

Wondering what happens next?

Our post-purchase guide explains everything you need to know about receiving your unit, choosing a qualified installer, preparing for installation, and protecting your warranty.

View the Post-Purchase Installation Guide
Technical Specifications User Manual

SOLAR COOLING offers a smarter way to stay comfortable year-round while lowering energy costs with the 12,000 BTU SOLAR COOLING Solar Hybrid Mini-Split for cooling and heating.

By combining the efficiency of a heat pump with renewable solar energy, it offers users substantial savings over conventional central air conditioning or standard heat pump systems.

The heat pump is uniquely engineered to use sun power (direct current/DC) as its main energy source, seamlessly drawing from the grid (alternative current/AC) when solar power isn't sufficient or unavailable. This integrated hybrid DC/AC technology eliminates the need for an inverter, battery, or charge controller to convert DC to AC, making installation quick and easy. Simply connect your solar array to the outdoor unit using MC4-type connectors and solar cables, and start harnessing the sun’s free energy to efficiently cool and heat your space.

Key features include:

  • Hybrid DC/AC technology: designed to use DC power as its primary energy source, the heat pump is equipped with a hybrid power system and will seamlessly operate on both sun power (DC) and grid power (AC) (sun) and AC (grid) power, without requiring an inverter, battery, or charge controller.
  • Solar-only operating mode available: you can choose to use only solar power to run the heat pump, without connecting it to the grid. In this mode, the heat pump won’t work at night and during cloudy periods.
  • Battery backup operating mode available: for total grid independence, the heat pump can run on battery power, charged by solar energy. This guarantees continuous cooling or heating, even at night or during power outages, without any dependence on the grid.
  • Uses Eco-Friendly R32 refrigerant
  • Remote control & WiFi enabled (iOS & Android)
  • Auto, Cool, Heat, Fan, and Dry mode available
  • Energy Star, ETL, CETL and NRCAN certified
  • Greatest Efficiency Rating with a SEER2 rating of 23.40
  • The system is engineered to function reliably in temperatures ranging from -15°C (5°F) to 55°C (131°F) for year-round comfort, even in harsh climates
  • Suggested Solar Power: 900 W - 1800 W
  • 5-Year Limited Warranty (professional installation required)
