Solar Hybrid Mini-Split Air Conditioner Heat Pump Kit

Build Your System

in 4 easy steps

Create a complete Solar Hybrid Mini-Split Air Conditioner Heat Pump system tailored to your needs:

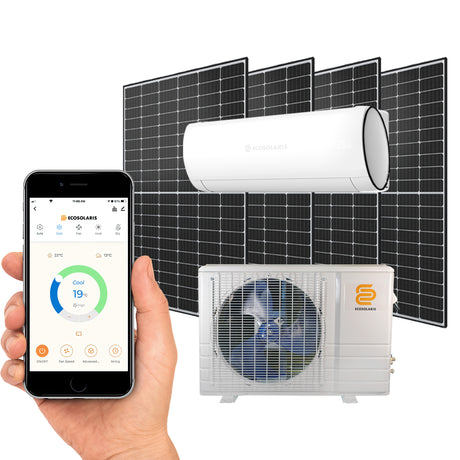

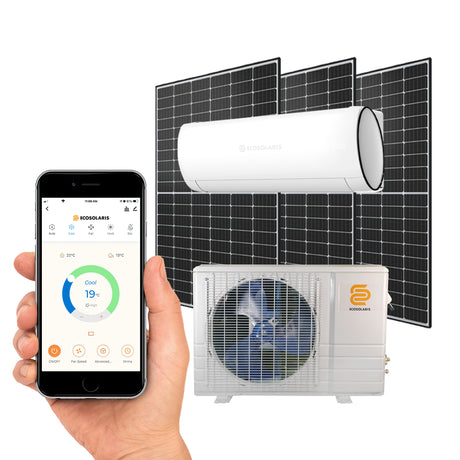

  • Step 1: Choose between the 12 000 BTU or 18 000 BTU Solar Hybrid Mini-Split Air Conditioner Heat Pump Kit (solar panels included).
  • Step 2: Select your PV wiring based on installation distance.
  • Step 3: Choose your outdoor unit support (wall mount, ground mount, or pad).
  • Step 4: Add electrical protections to safeguard your system (and activate the 5-year limited warranty)

How to order: Click “Add to cart” or “Choose options” when hovering over a product to add it to your cart. For more details, click on the product itself.

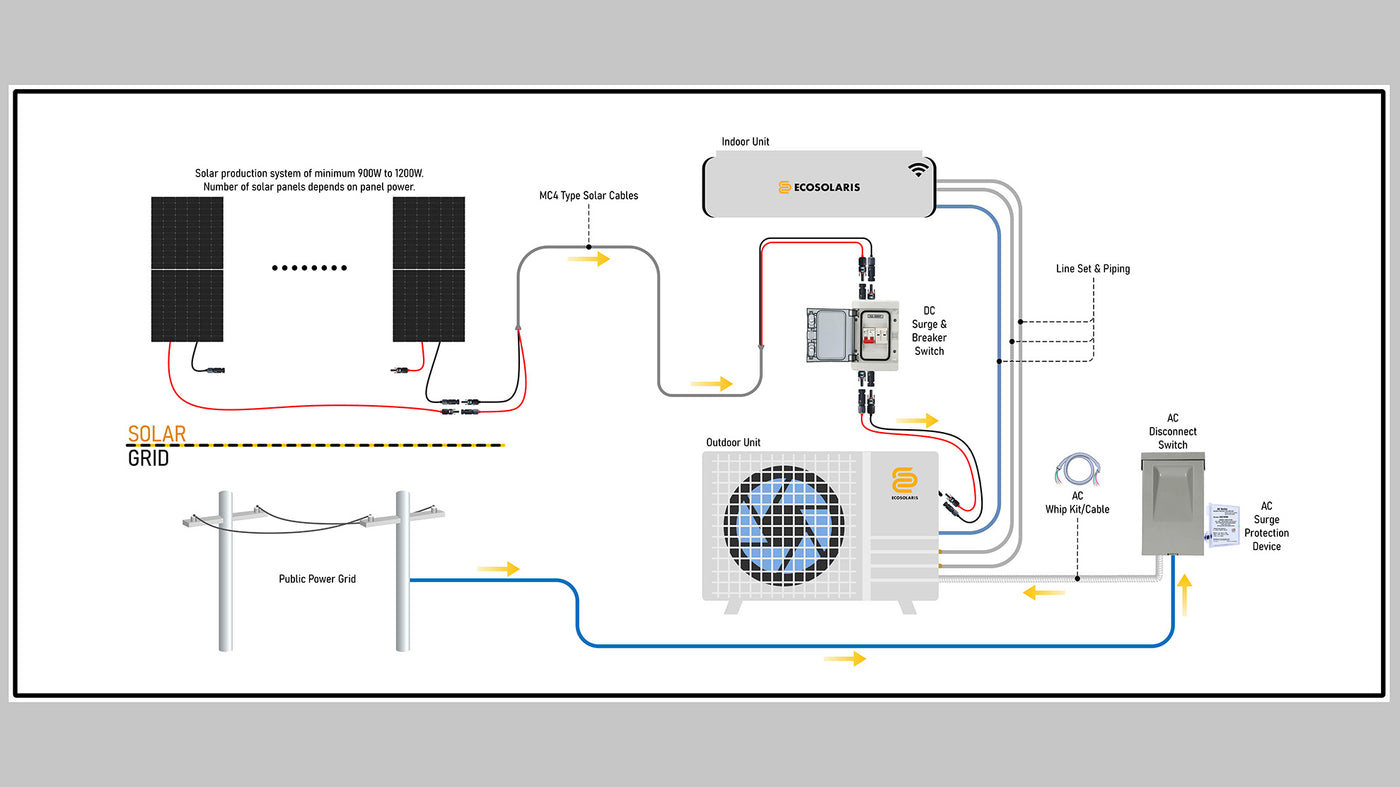

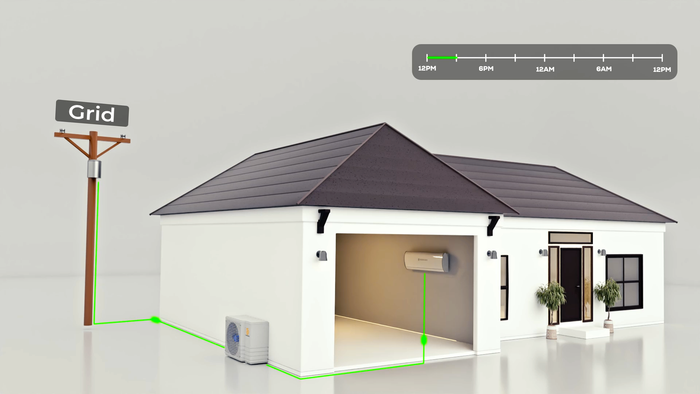

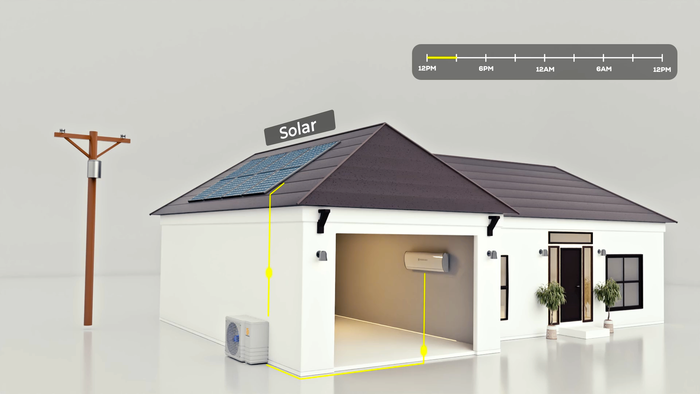

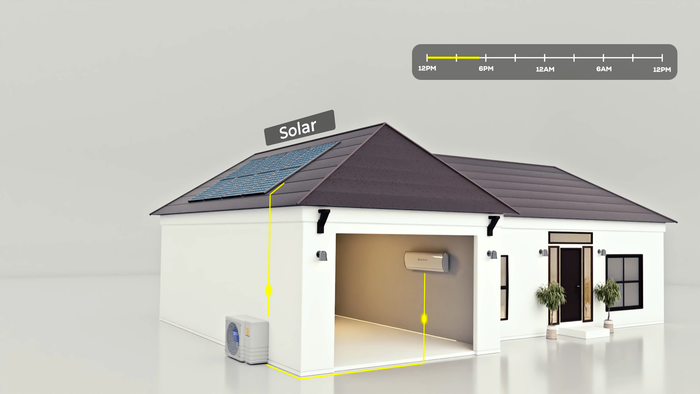

Hybrid Installation Setup Diagram

To help you understand the hybrid installation setup (solar/DC + grid/AC) and select the right components, you can refer to the installation diagram below. Don't hesitate to contact us if you need assistance.

Step 1: Choose Your Solar Heat Pump Kit (solar panels included)

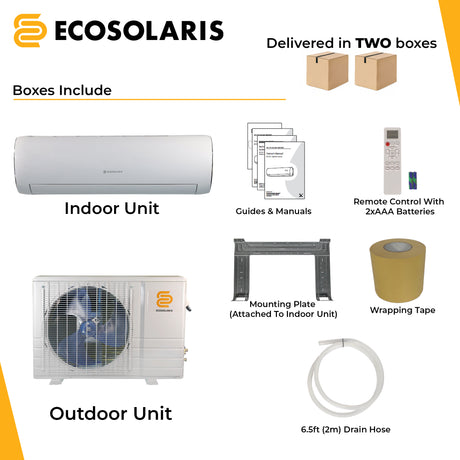

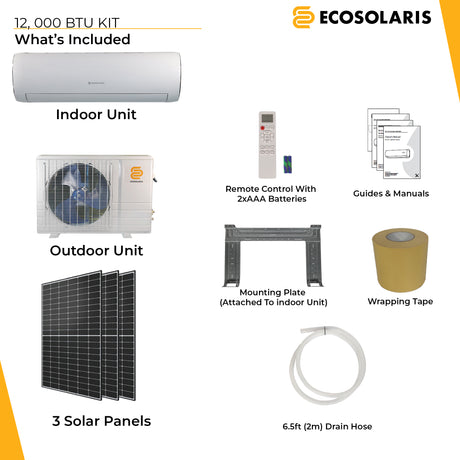

Choose between the 12 000 BTU or 18 000 BTU model. Each kit includes the Solar Hybrid Heat Pump, heat pump installation accessories and solar panels.

Step 2: Select Your PV Wiring

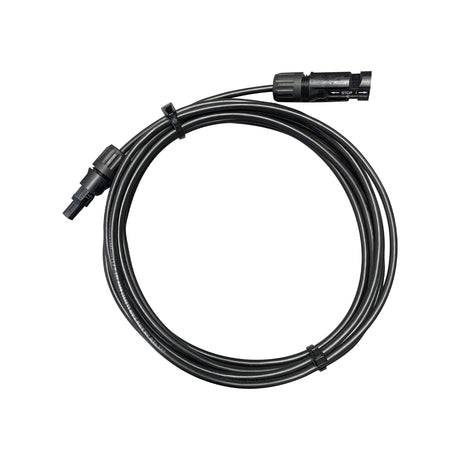

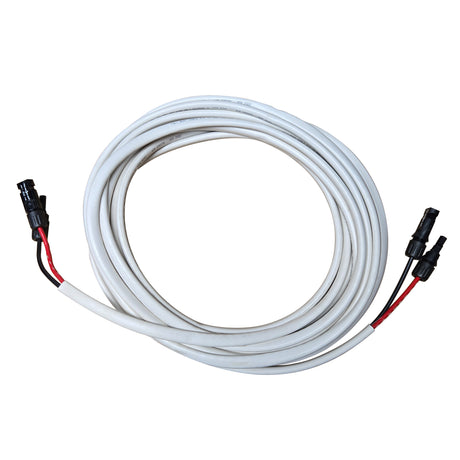

For standard installations, we recommend buying a 10AWG/2 solar cable in 30, 50, or 75 ft, depending on the distance between your solar panels and the heat pump, You also need a solar cable extension of 15 or 30 ft, depending on the amount of solar panel in the series, to link the last solar panel to the main 10AWG/2 solar cable.

For connection between the DC electrical protections and the heat pump, you should also add a 5-ft 10AWG/2 solar cable.

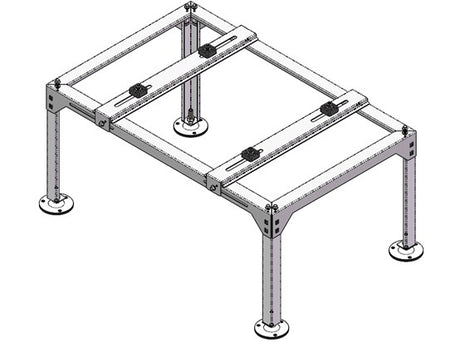

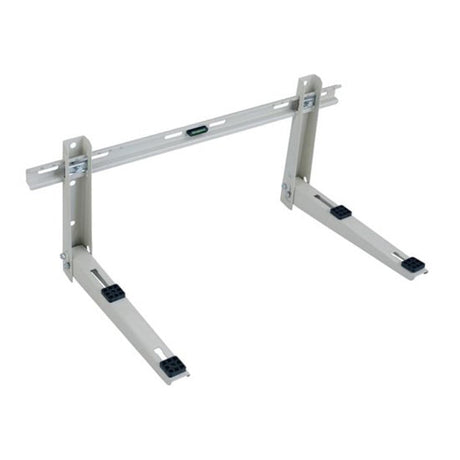

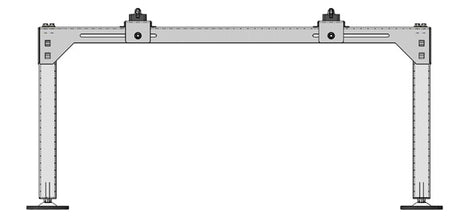

Step 3: Choose Your Outdoor Unit Support

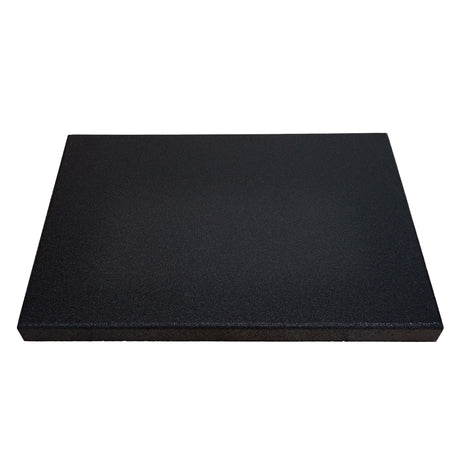

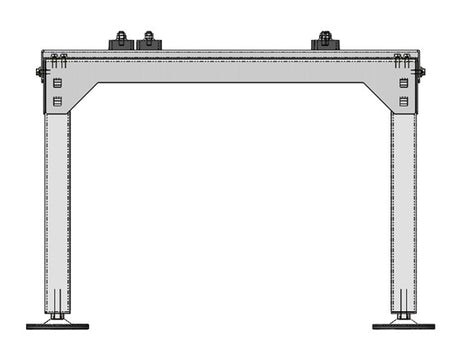

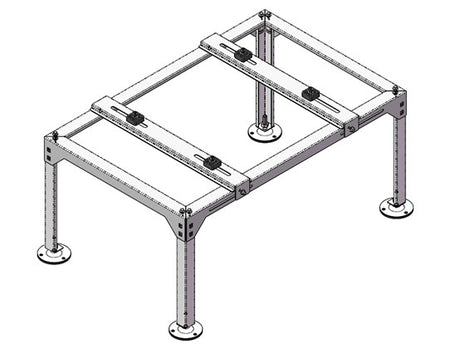

Choose beween a wall mount, ground mount, or a pad for direct ground placement. For ground mounts, we recommend adding a pad on the ground for more stability.

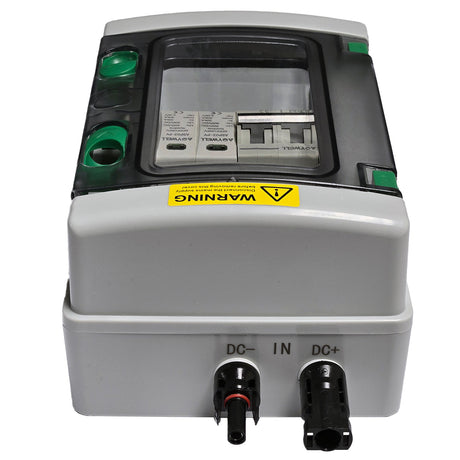

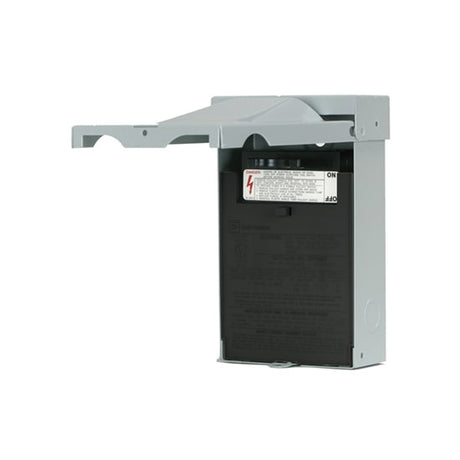

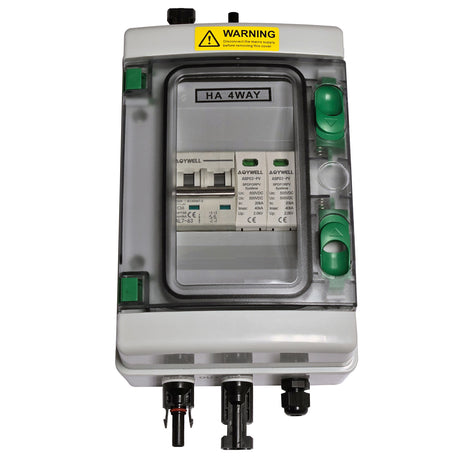

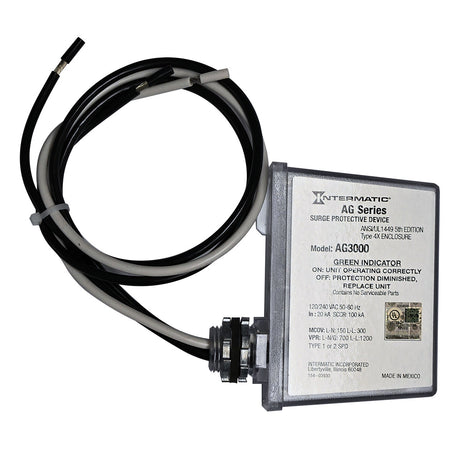

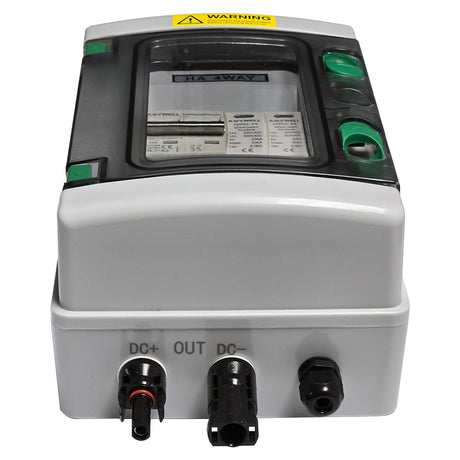

Step 4: Select Your Electrical Protections

Electrical protections are essential for safety and compliance and required for the 5-year limited warranty.

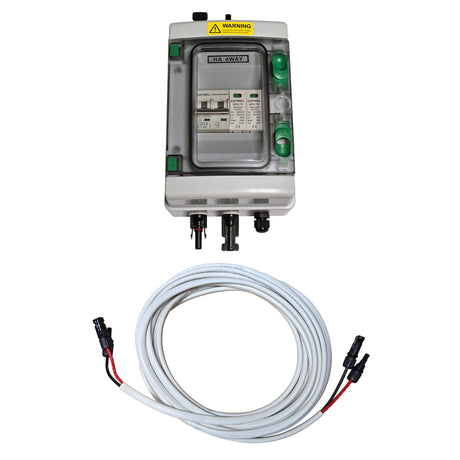

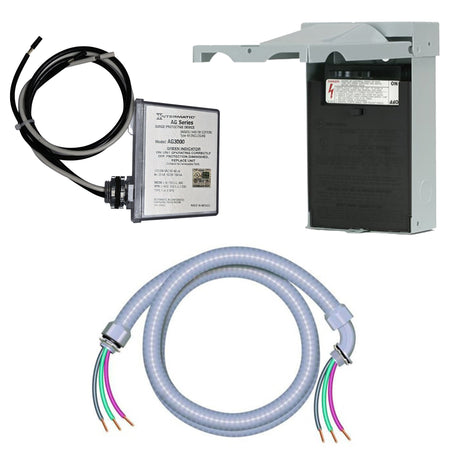

Choose our Electrical Safety Protection Kit for complete hybrid installation coverage, or select individual protections as needed.

Also need a mounting system for solar panels on your roof?

If you'd like to add a racking system for your roof-mounted solar panels, we offer railless solar mounting systems. Visit the Solar Panel Racking Kits page to discover our available products and choose a racking kit according to the number of solar panels you'll be installing on your roof.
