Solar Cooling  |  SKU: ECO-SPLIT-12K-R32-V2  |  Barcode: 184648000193

SOLAR COOLING 12,000 BTU Hybrid Solar Mini-Split — Air Conditioner Heat Pump — Energy Star Certified — SEER2 23.4

$1,299.00 CAD $2,199.00
Shipping calculated at checkout.

Certification Intertek Energy Star thermopompe solaire Ecosolaris

Description
  • Weight: 84 lb (38 kg)
  • Rated BTU: 1 Ton / 12 000
  • Cooling Efficiency Rating (SEER2): 23.40
  • Heating Efficiency Rating (HSPF2): 9.70
  • Energy Star Certified

Suggested Solar Power: 900 W - 1800 W. For off-grid use, aim at least for the higher end of this range (around 1800 W) to ensure reliable operation. In hybrid mode (solar + grid), less solar input is needed, so 900 W may be sufficient.

Recommended Floor Area: 500-900 sq ft (45-85 sq m)

*Factors such as climate zone, flooring type, ceiling height and insulation will affect recommended BTU per sq ft / sq m.


Included:
  • Indoor Unit
  • Outdoor Unit
  • Remote Control
  • 2m (6.5ft) Drain Hose

Warranty

This product includes a Standard 1-year limited warranty included. To qualify for the extended 5-year limited warranty, the system must be installed by qualified, certified professionals and comply with all applicable warranty terms and conditions: https://solarcooling.ca/pages/warranty

Delivery and Shipping

Free shipping on heat pumps anywhere in Canada. Orders are shipped within 2 business days.

If a problem prevents us from shipping your order within this time, we will notify you.Depending on your delivery location, transit time will vary from 1 day to 5 days.

Technical Specifications User Manual

Wondering what happens next?

Our post-purchase guide explains everything you need to know about receiving your unit, choosing a qualified installer, preparing for installation, and protecting your warranty.

View the Post-Purchase Installation Guide

SOLAR COOLING offers a smarter way to stay comfortable year-round while lowering energy costs with the 12,000 BTU SOLAR COOLING Solar Hybrid Mini-Split for cooling and heating.

By combining the efficiency of a heat pump with renewable solar energy, it offers users substantial savings over conventional central air conditioning or standard heat pump systems.

The heat pump is uniquely engineered to use sun power (direct current/DC) as its main energy source, seamlessly drawing from the grid (alternative current/AC) when solar power isn't sufficient or unavailable. This hybrid DC/AC technology eliminates the need for an inverter, battery, or charge controller to convert DC to AC, making installation quick and easy. Simply connect your solar array to the outdoor unit using MC4-type connectors and solar cables, and start harnessing the sun’s free energy to efficiently cool and heat your space.

Key features include:

  • Hybrid DC/AC technology: designed to use DC power as its primary energy source, the system is equipped with a hybrid power system and can seamlessly operate on both DC (sun) and AC (grid) power, without requiring an inverter, battery, or charge controller.
  • Solar-only operating mode available: you can choose to use only solar power to run the heat pump. In this mode, the heat pump won’t work at night and during cloudy periods.
  • Battery backup operating mode available: for total grid independence, the heat pump can run on battery power, charged by solar energy. This guarantees continuous cooling or heating, even at night or during power outages, without any dependence on the grid.
  • Uses Eco-Friendly R32 refrigerant.
  • Remote control & WiFi enabled (iOS & Android).
  • Energy Star, ETL, CETL and NRCAN certified.
  • Greatest Efficiency Rating with a SEER2 rating of 23.40.
  • The system is engineered to function reliably in temperatures ranging from -15°C (5°F) to 55°C (131°F) for year-round comfort, even in harsh climates.
  • 5-Year Limited Warranty (professional installation required).

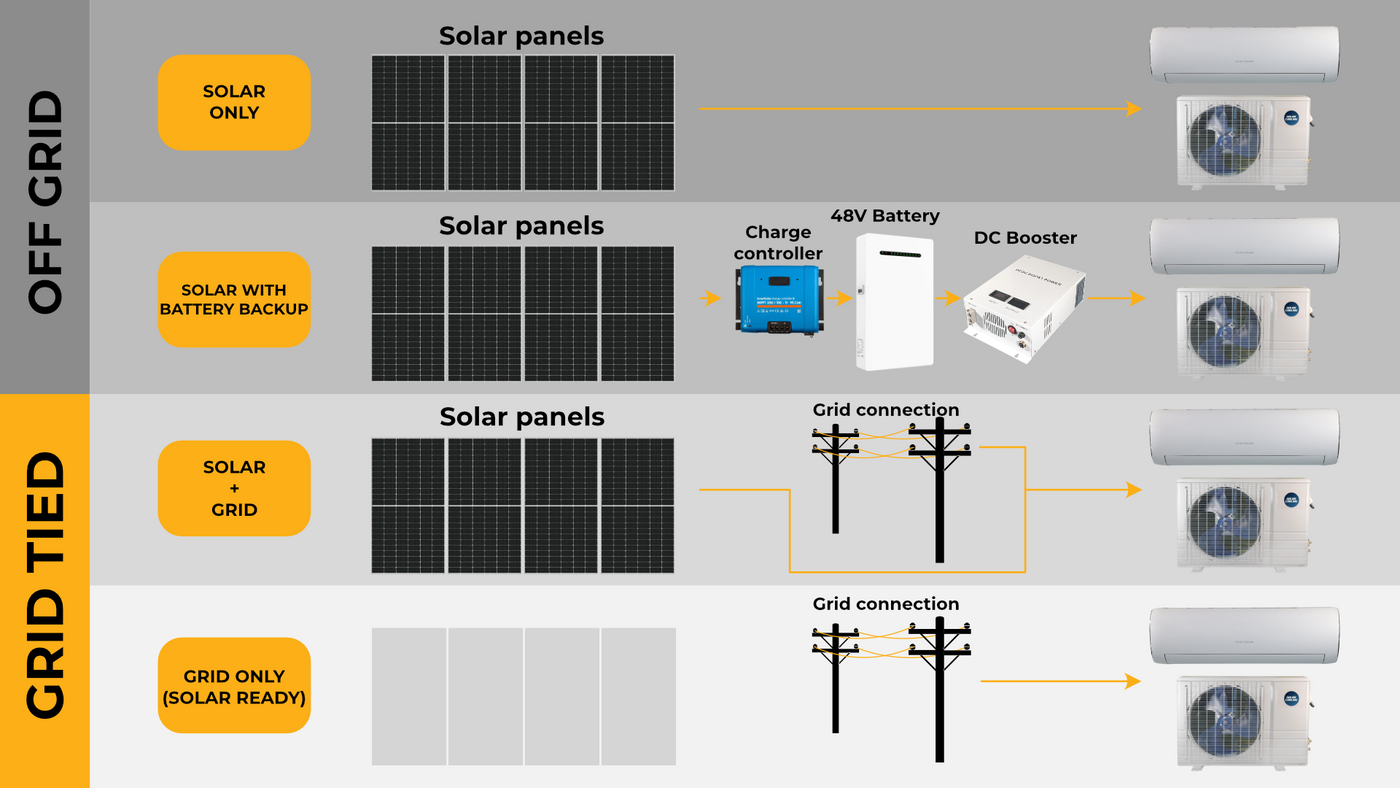

Installation Diagrams by Operating Mode

Installation Diagrams
