Hybrid ACDC Solar Window AC. - Solar Cooling Ecosolaris
Solar Cooling Ecosolaris  |  SKU: ECO-A1HY12-32-48-120-WN

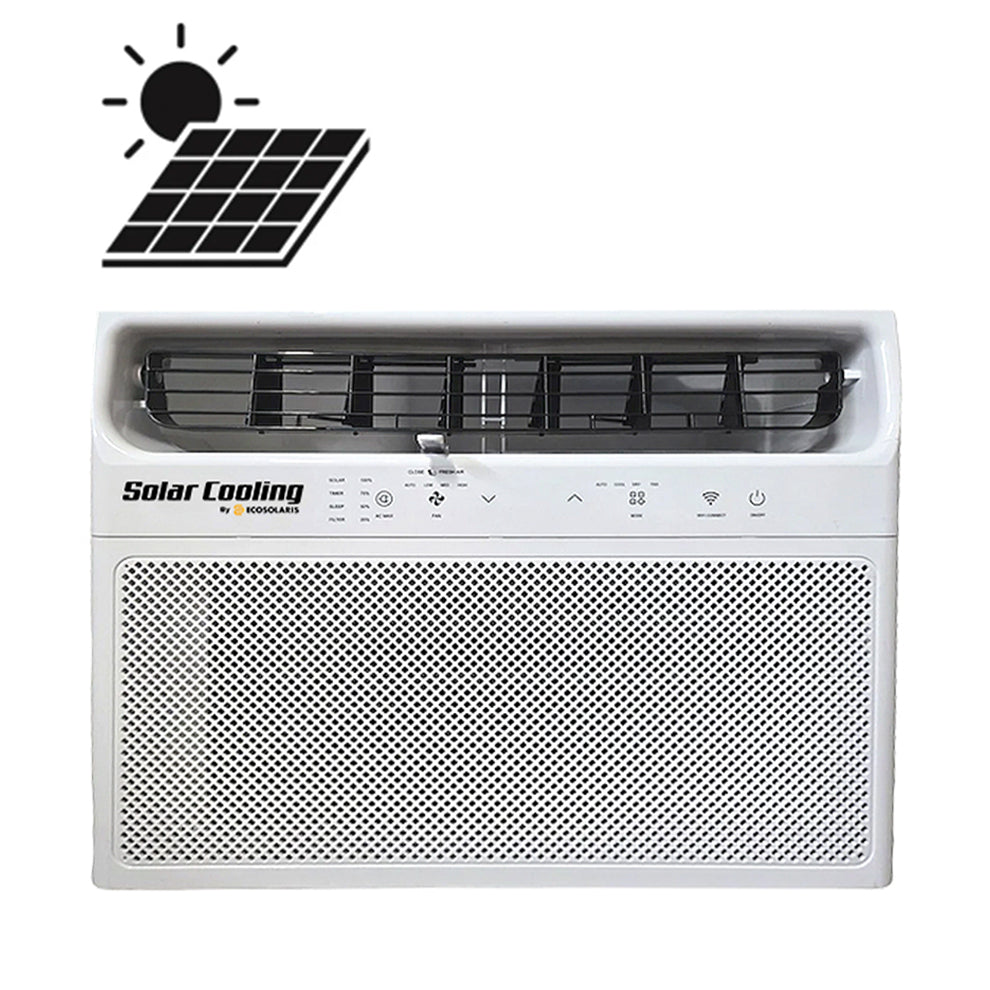

NEW – PRE-ORDER NOW! Hybrid Solar Window Air Conditioner 12,000 BTU

$999.99 CAD $1,299.99
Shipping calculated at checkout.
  • Weight: 55.1 lbs (25 kg)
  • Product dimensions (WxHxD): 18.9" × 15.0" × 24.8" (480 x 380 x 630 mm)
  • Rated BTU: 1 Ton / 12 000
  • Combined Energy Efficiency Ratio (CEER): 15
  • Suggested Solar Power: 1 200 W (max 1 800 W)
  • Recommended Floor Area (for outdoor temperatures range between 29 and 35 °C): 35 to 55 sq m (400 to 600 sq ft)

*Factors such as climate zone, flooring type, ceiling height and insulation will affect recommended BTU per sq ft / sq m.

Included:

  • One (1) window air conditioning unit
  • Two (2) photovoltaic connectors (1x pair)
  • One (1) solar connector wrench
  • One (1) foam seal
  • One (1) adhesive seal
  • Two (2) EVAfoam
  • One (1) top rail
  • Two (2) sealing side panels
  • One (1) remote control with with two (2) AAA batteries
  • Other installation accessories: locks, screws, seals
Technical Specifications User Manual

The Hybrid ACDC Solar Window Air Conditioner offers a unique dual-power solution by combining direct solar energy with traditional AC grid power. Designed with advanced DC inverter technology and a 180° sine wave controller, it ensures superior efficiency, quiet operation, and reliable cooling performance. With a rated cooling capacity of 12,000 BTU and energy consumption as low as 1,100 W, it can reduce electricity usage by up to 100% during daytime solar operation.

Equipped with WiFi connectivity, users can conveniently adjust settings remotely, while multiple modes (cool, dry, fan, heat, and auto) provide year-round comfort. The removable, washable air filter guarantees clean airflow, and the smart hybrid auto-balance function optimizes power usage between solar and grid supply. Compact in size with easy installation, this eco-friendly unit is suitable for spaces of 35 to 55 sq m (400 to 600 sq ft)., making it an excellent choice for homeowners seeking both comfort and sustainable energy savings.

Technical specifications

  • AC Power Supply: 115V / 60Hz
  • DC, PV Power Supply: 80–380V
  • Series Connection Current: ≤14A
  • CEER: 15.0 W/W
  • Rated Cooling Capacity (T1): 12,000 BTU
  • Rated Power Input (T1): 1100 W
  • Maximum DC (PV) Power Input: 1 700 W
  • Recommended PV power: 1 200 W
  • Dehumidification Capacity: 1 L/h
  • Air Flow (High / Medium / Low): 500 / 450 / 400 m³/h
  • Noise Level (Indoor / Outdoor): 42 / 55 dB(A)
  • Unit Dimensions (W x H x D): 480 × 380 × 630 mm
  • Packing Dimensions (W x H x D): 581 × 413 × 706 mm
  • Net / Gross Weight: 25.0 / 34.0 kg
  • Refrigerant Type & Charge: R32 (450 g)
  • Max Design Pressure (Discharge / Suction): 4.3 / 1.5 MPa
  • Operating Temperature Range: 16°C ~ 32°C
  • Ambient Temperature (Cooling): 16–55°C
  • Recommended Floor Area (for outdoor temperatures range between 29 and 35 °C): 35 to 55 sq m (400 to 600 sq ft)
