Midnite MNPV3 DC Combiner Box - Solar Cooling Ecosolaris
1 2
Midnite Solar  |  SKU: COMB-MIDNITE-MNPV3

DC Combiner Box for 3 x 150 VDC breakers or 2 x 600 VDC fuse holders | MNPV3

$211.99 CAD
Shipping calculated at checkout.

Midnite Solar MNPV3 for 150 VDC charge controllers and 600 VDC grid-tie inverters.

Warranty

This product is covered by a 5 years warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for U.S. Consumers (Online Purchases): All import duties are included in the total price. You’ll make a single payment for your order, and your product will be delivered with no additional customs or import fees upon arrival.

Technical Specifications User Manual

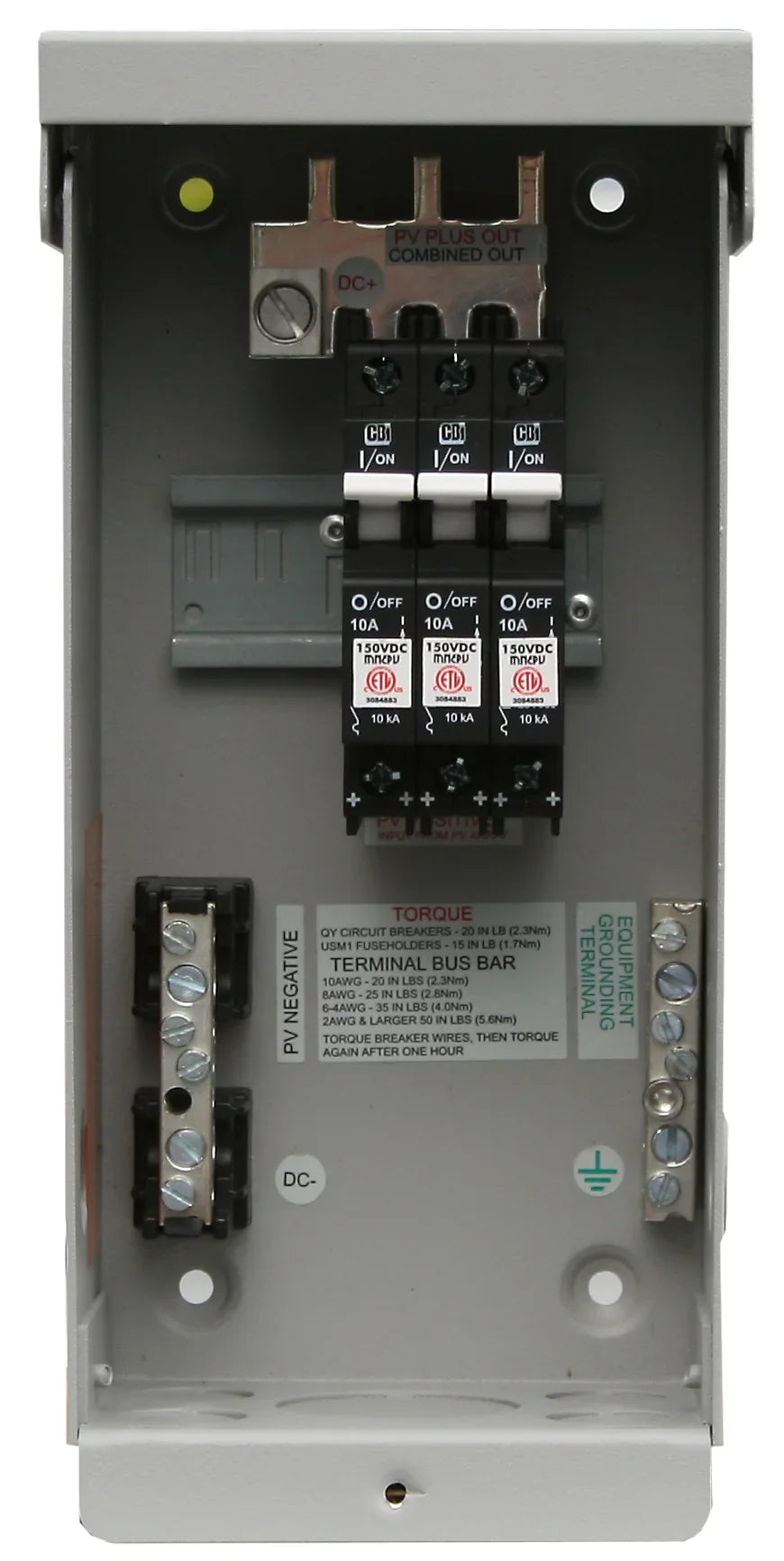

  • Gray aluminum type 3R rainproof enclosure with insulating deadfront, will accept three 150VDC (MNEPV) breakers or two 600/1000 VDC fuse holders.
  • With modifications to the deadfront 3 dinrail fuse holders can be used. Includes a 60 amp plus bus bar, 6 position PV negative bus bar and a 6 position ground bus bar.
  • Punch out tabs on the plastic deadfront make for a clean installation using circuit breakers.
  • An included snap in adapter makes for a professional looking installation when installing fuse holders.
  • A single 300VDC breaker from 7 to 50 amps may be installed as a disconnect (no combining busbar) .
  • The enclosure may be mounted to a pole or wall indoors or out.
