MidNite Solar, 15A, 300 VDC, DIN rail mount, 13mm wide. - Solar Cooling Ecosolaris
1 5
Midnite Solar  |  SKU: DISJ-MIDNITE-MNEPV15-300

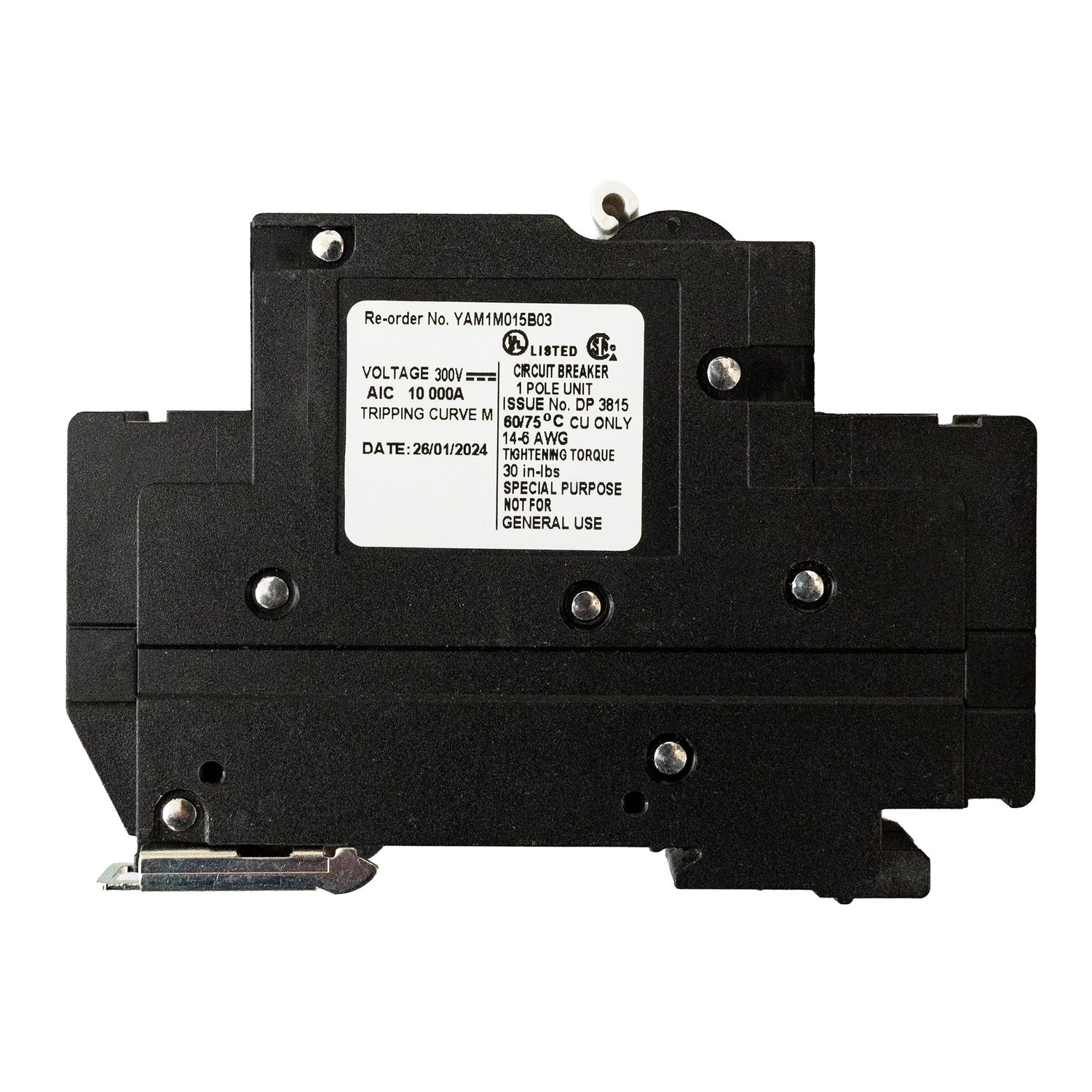

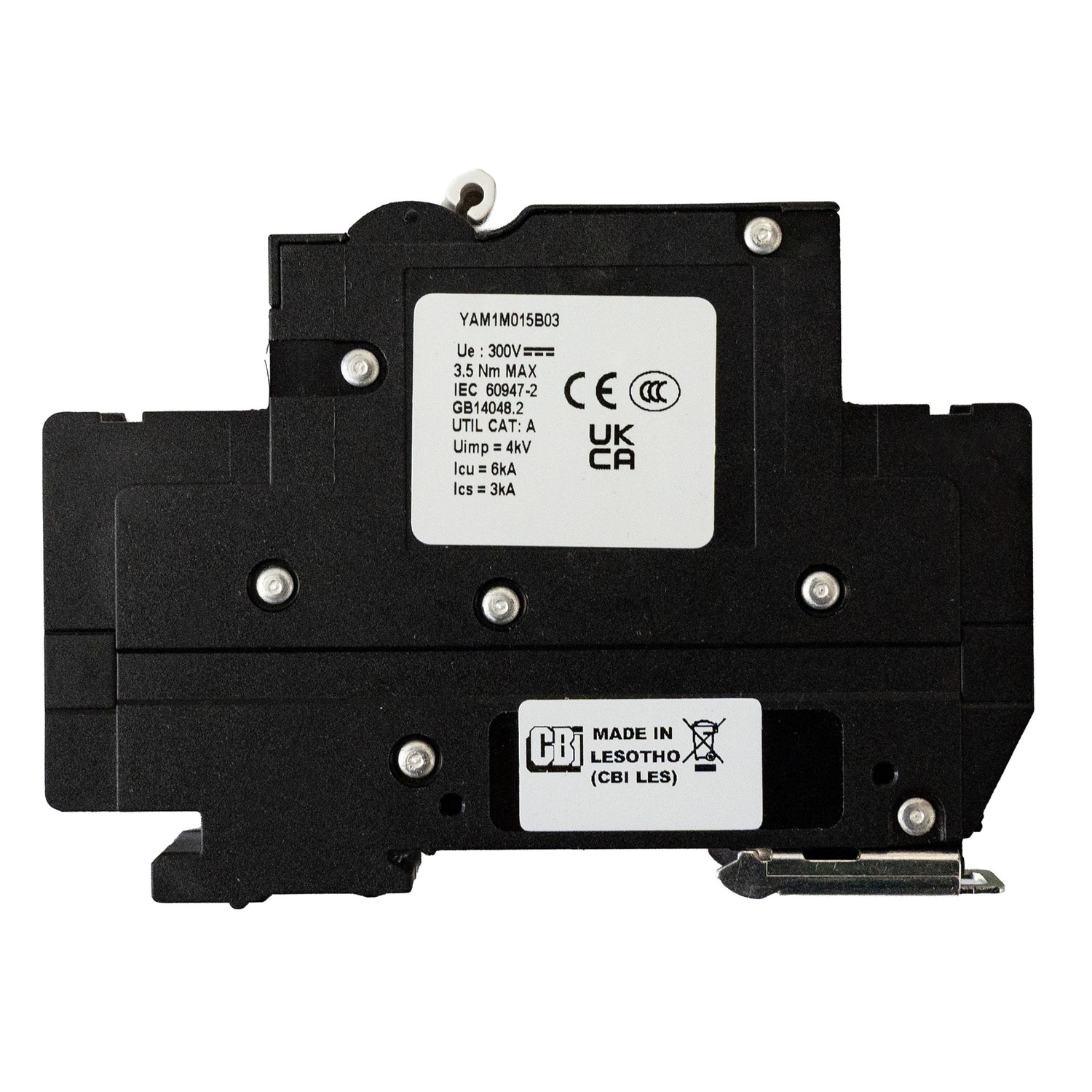

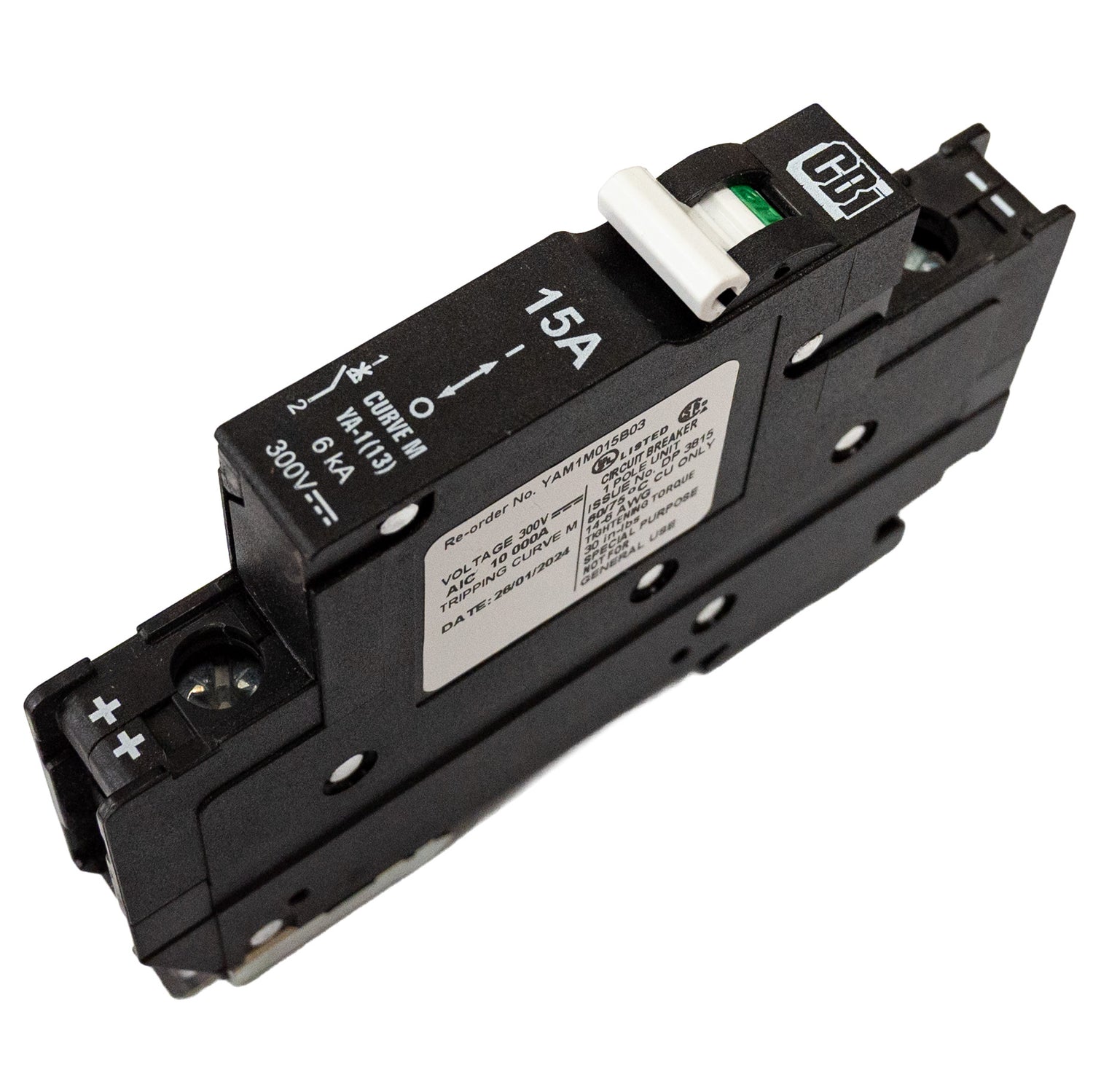

MidNite Solar, 15A, 300 VDC, DIN rail mount breaker, 13mm wide | MNEPV15-300

$29.90 CAD
Shipping calculated at checkout.

Midnite Solar 15A 300 VDC DIN rail mount breaker. Commonly used in E-Panels and BabyBox enclosures, fit any standard DIN rail. These breakers have been evaluated by ETL to 150 VDC and are listed for US and Canada.

Wire Size Range - 14 to 6 AWG

Warranty

This product is covered by a 5 years warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for U.S. Consumers (Online Purchases): All import duties are included in the total price. You’ll make a single payment for your order, and your product will be delivered with no additional customs or import fees upon arrival.

Technical Specifications User Manual

Midnite Solar 300 VDC DIN rail mount breaker. Commonly used in E-Panels and BabyBox enclosures, fit any standard DIN rail. These breakers have been evaluated by ETL to 300 VDC and are listed for US and Canada.

MidNite’s breakers are rated to break the full rated load at the rated voltage repeatedly, with no damage. Always use a properly sized breaker for disconnecting.

Features

  • Compact 13mm/module width
  • Hydraulic-magnetic technology
  • Precision tripping
  • Suitable for isolation
  • Temperature independent trip point
  • Mid trip handle
  • Wire Size Range - 14 to 6 AWG
